OU-SKS – Cable cabinet enclosures

0,00  with VATPL

SKU: FIREBOX Category:


  • For industrial and construction energy facilities;
  • For cable cabinets controlling external switch systems in high-voltage substations (100kV, 220kV and 400 kV),
  • Secondary circuits, automation systems;
  • To distribution cabinets of low-voltage cable networks responsible for the distribution of electricity and protection of electrical equipment;
  • For apparatus up to 1250A;
  • To provide a high degree of protection for switchgear, control, control and automation equipment;
  • For installation on FM and FB foundations.

Design description

Available executions

  • single shell – outer shell;
  • Single shell with thermal insulation – outer shell with Al thermal insulation mat.;
  • double-walled with air gap – outer jacket
  • internal with air space;
  • double-shell with insulation – the space between the shells filled with non-flammable rock wool.


  • Outdoor, free-standing on a concrete or metal foundation;
  • Made of aluminum sheet joined by welding and riveting;
  • Made of aluminum sheet joined by welding and riveting;
  • Powder coating in any color (RAL) and surface texture with high resistance to deterioration and external factors;
  • Connected to the foundation with screws;
  • Made in protection class I or II;
  • Degree of protection up to IP 55;
  • Mechanical resistance: up to IK10.


  • full;
  • single-sided or double-sided, for better access to the apparatus;
  • Single-leaf or double-leaf;
  • locked with a cylinder lock (any shape) or a basquil lock locked with a system cylinder and an additional padlock;
  • three-point locking;
  • Interior hinges with anti-burglary catch;
  • opening angle 120 deg;
  • Grounding studs with wiring.

Roof and bottom

  • Gabled roof with a ventilation maze and ventilation to prevent the accumulation of water and moisture.


  • Has an opening that allows the introduction, through an additional fire bulkhead, of cables from the cable duct;
  • Prepared for the fire bulkhead, using bolted connections.


Dimensions adapted to the type, amount of equipment and individual needs of the customer.Typical implementations:

  • height: 1100/1900/2100/2200 mm;
  • width: 400/600/800/820/850/1000/1050/1250/1400 mm;
  • depth: 250/300/400/600/620/800 mm.


Equipment is selected each time according to the needs of the customer.

  • vertical mounting profiles – permanently attached to the walls of the enclosure suitable for mounting plates or current path support insulators;
  • mounting plate – galvanized, mounted on vertical mounting profiles made of galvanized sheet metal under the current track insulators;
  • comb trays – with a cross-section adapted to the type and amount of cabling;
  • Masking plates – made of plastic plates or metal sheets, mounted to the housing structure or internal frame, with the help of mask plate brackets;
  • control panel with synoptic board – made in a unique way, by applying offset printed adhesive sheets to the entire surface of the board, with the possibility of printing any graphics. Mounted in an internal frame;
  • lighting and heating – heating circuits, thermostat along with heating resistor; located in the lower part of the cabinet. Lighting – two fluorescent lamps, assembled in the upper part, so that we get an even intensity of lighting across the width. Limit switches and a panel switch are mounted in the cabinet
  • (It is possible to install the apparatus anywhere according to the customer’s requirements);
  • Cable holders with mounting bar;
  • galvanized steel grounding rail;
  • ventilation – allowing constant airflow through the use of a fan and proper opening of the housing;
  • document pocket.

The enclosure can additionally contain the circuits of the basic electrical system each time prepared by the designer, depending on the specific project.


plinth– full, welded;

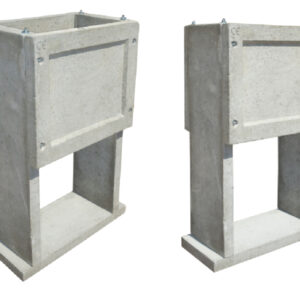

FB concrete or FM metal foundation – fitted to the dimensions of the cabinet;
fire bulkhead GO – prevents fire and other agents from entering the interior of the cabinet.

Rated parameters

IP rating:55
IK degree of mechanical resistance:10
Protection class:I

Compliance with standards

PN-EN 62262
“Degrees of protection against external mechanical impact provided by electrical equipment enclosures (IK Code).”
PN-EN 60529
“Degrees of protection provided by enclosures (IP Code)”;
PN-EN 62208
“Empty enclosures for low-voltage switchgear and controlgear. General requirements”;
PN-EN ISO 4628
“Paints and varnishes – Evaluation of deterioration of coatings – Determination of the amount and extent of damage and the intensity of uniform changes in appearance – Part 6: Evaluation of the degree of chalking by the tape method.”
PN-EN ISO 2409
“Paints and varnishes – Testing by the notch grid method”.
